Axial Flux Electric Motors: Series Motors

YASA is leveraging higher volume production intent motor cores to create near-off-the-shelf series motors suited to a wide range of applications in production volumes of 1,000+ motors per year.

The series motor offering features two motor ranges: YM360 and YM720. Both motors are suited to hybrid and electric propulsion applications in the 400V – 800V range. YM360 is a 125kW peak power motor ideal for high performance automotive hybrid use. YM720 is an incredibly power dense motor offering a peak power of 350kW, well suited to high performance automotive and marine electric drive or heavier duty hybrid and export power applications.

Both the YM360 and YM720 motors are based on proven rotor and stator subassemblies giving customers the opportunity to leverage leading-edge technology without the need to invest in a fully custom motor solution. The motor package can be tailored to meet specific application needs, or a standard package can be utilised. Specific test and validation requirements can be met with a dedicated test and validation plan. Use of a standard motor core enables the motor pricing to scale very competitively with volume.
Get in touch

YM360

YM360 Specification

Peak Torque (30s): 360 Nm
Peak Power (30s): 125kW
Continuous torque: 108 Nm
Continuous power: 58 kW
Max speed: 9,000
Mass: 24 kg
Size: 305 x 107 mm
Cooling medium: Dielectric Oil
Request the YM360 Data Sheet

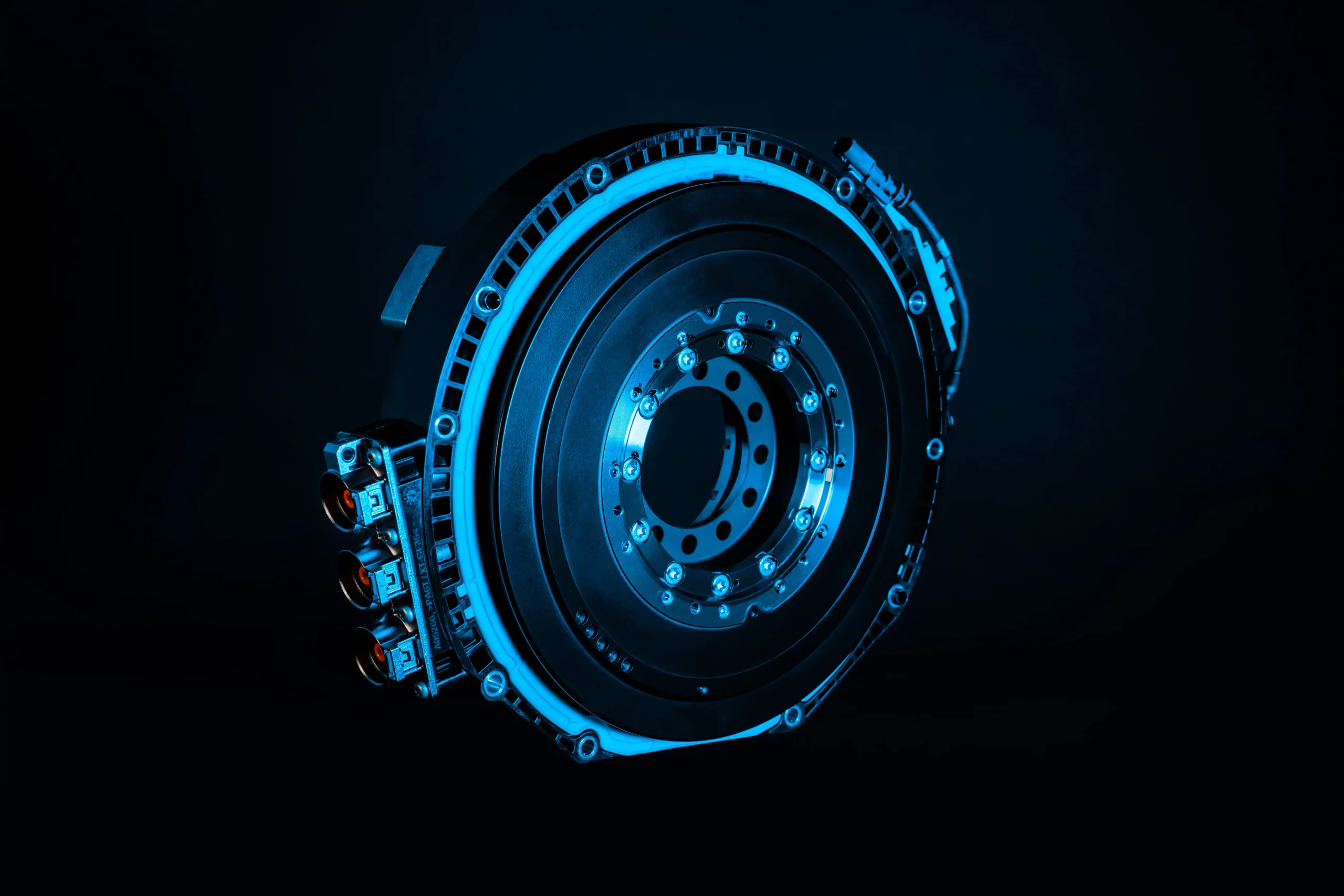

mclaren v6 hybrid (1)

YM720

YM720 Specification

Peak Torque (30s): 700 Nm
Peak Power (30s): 350 kW
Continuous torque: 350 Nm
Continuous power: 180 kW
Max speed: 10,000 rpm
Mass: 33 kg
Size: 345 x 123 mm
Cooling medium: Dielectric Oil
Request the YM720 Data Sheet

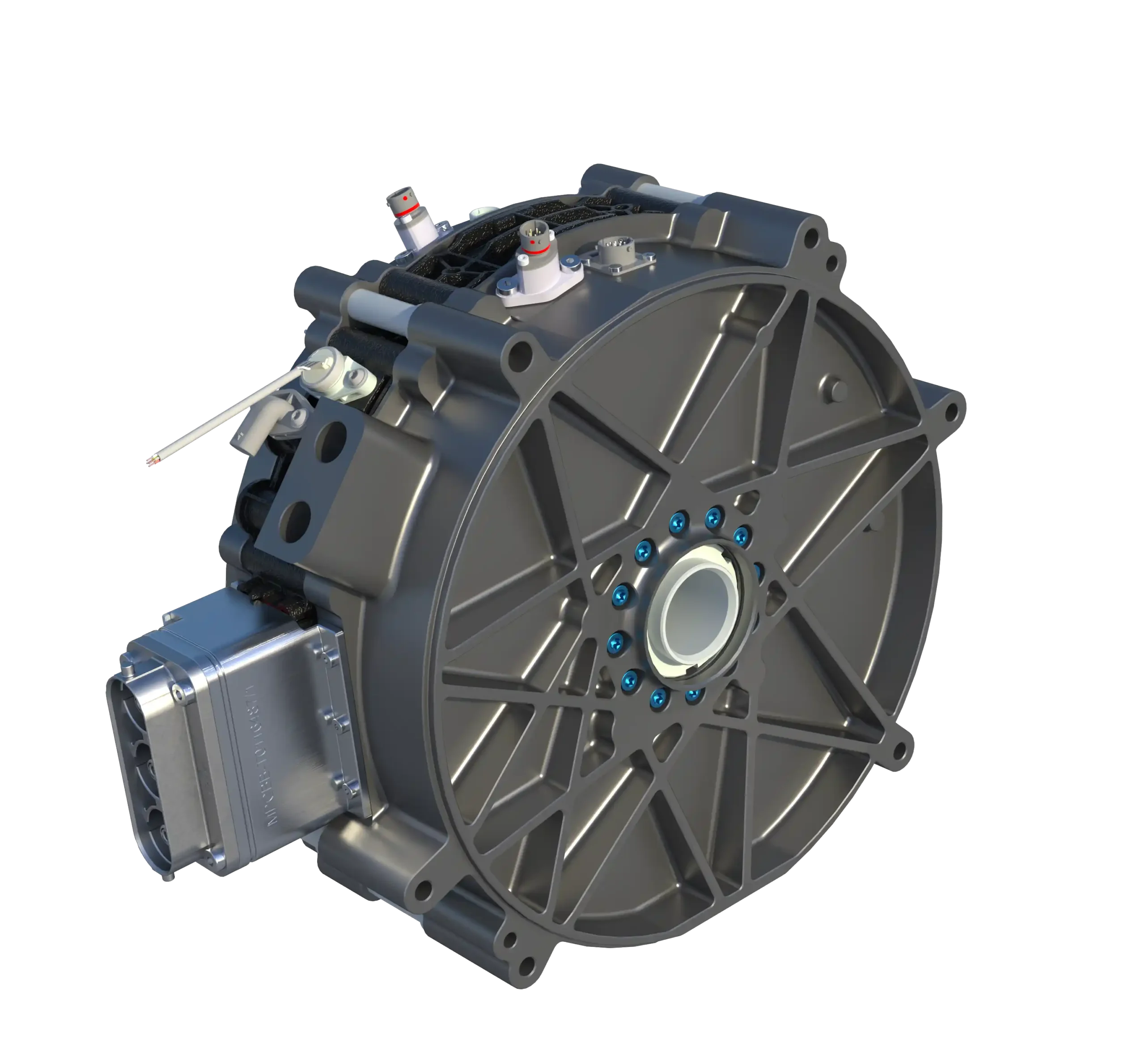

ym720 (1)
